High-stiffness Motorized Gripper with Anti-drop Feature and Drop Detection RM-GB-11-40-2-2-S0028-ITG

Servo Clamping Jaw (RM-GB-11-40-2-2-S0028-ITG) is an electric clamping jaw with excellent performance, which demonstrates outstanding advantages with efficient control and powerful clamping force. It has remarkable features such as high rigidity, high load, high precision, high reliability, etc., and can adapt to a variety of complex working environments; from miniature to heavy-duty type, it provides a variety of optional strokes, with a comprehensive range of specifications to meet different needs; it is able to cooperate with a variety of collaborative robots and industrial robots, and complete the assembly, transport, palletising and other processes for all kinds of items of different weights. It has a clamping stroke of 40mm, a guide length of 2, a bottom outlet position, an adapter outlet and a wire length of 2.8m.

The RM-GB has a maximum payload of up to 7kg, which is 2-3 times its own weight, and a maximum clamping force of 110N, which is far ahead of similar products. Whether it's a heavy item or a miniature item, it can handle it with ease. With a service life of up to 10 million cycles, it won't fail even under extreme loads, and its stability is top-notch.

Output Cable: Bottom Wiring

Outgoing Line Method: Adapter Wiring

Max.speed (mm/s): 80

Repeat Positioning Accuracy (mm): ± 0.05

Backlash (mm): < 0.1 ( Single-Side)

Permissible Load Torque: MR: 8.0, MP: 5.9, MY: 5.9

Control Method Bus: Modbus RTU

Control Method Interface: I/O

Interface: Input 2 Points(NPN), Output 3 Points( NPN)

Rated Voltage (V): DC24± 10 %

Rated Current(A): 2

Weight (kg): 1.1

Usage Environment: 0~40℃, < 85%RH ( Without Condensation)

Protection Class IP: IP 40

1.The data is sourced from the actual test results in the 25℃ laboratory.Notes:

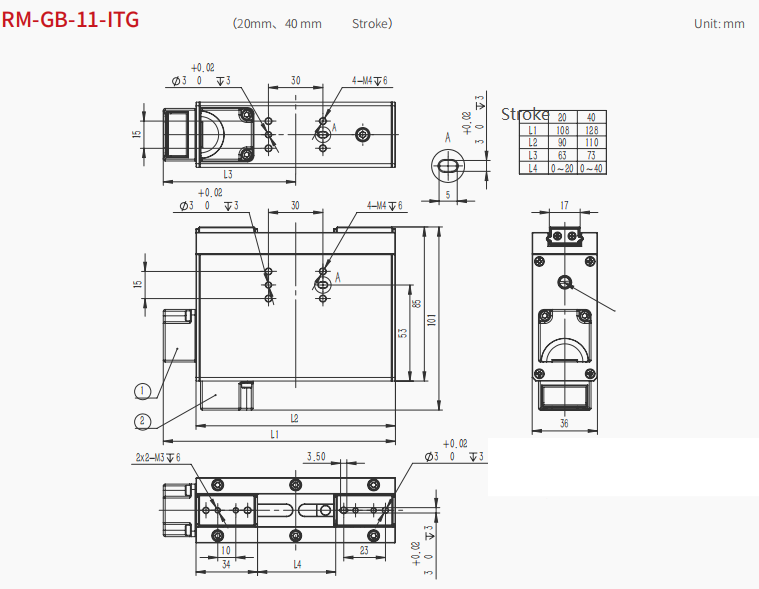

2.The drawings provided in this Catalogue are for the default standard model. If you require other models with different motor directions, outlet directions, or outlet methods, please contact your local sales representative to obtain the drawings for the optional models.
